СЗМ принцип: AСМ
Размер: 50x50 um

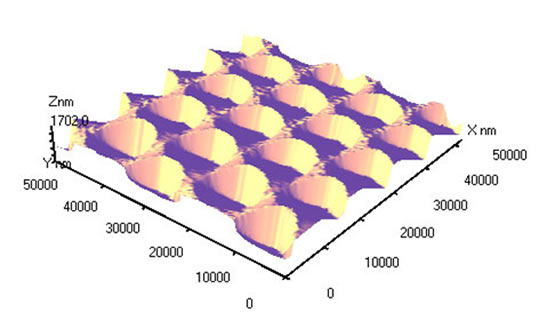

AFM image of the microchannel plate's cell matrix. Every dark circle is a pore, which operates as a electron-multiplier tube if 1kV is applied. Diameter of each pora is 10 um and distance from one center to another is 12 um. MCP is produced from leaden-silicate glass and MCP is used as electron-volume amplifier.

Image courtesy of V. A. Smirnov, Taganrog State University Of Radioengineering, College of Electronics and Electronic Equipment Engineering.
